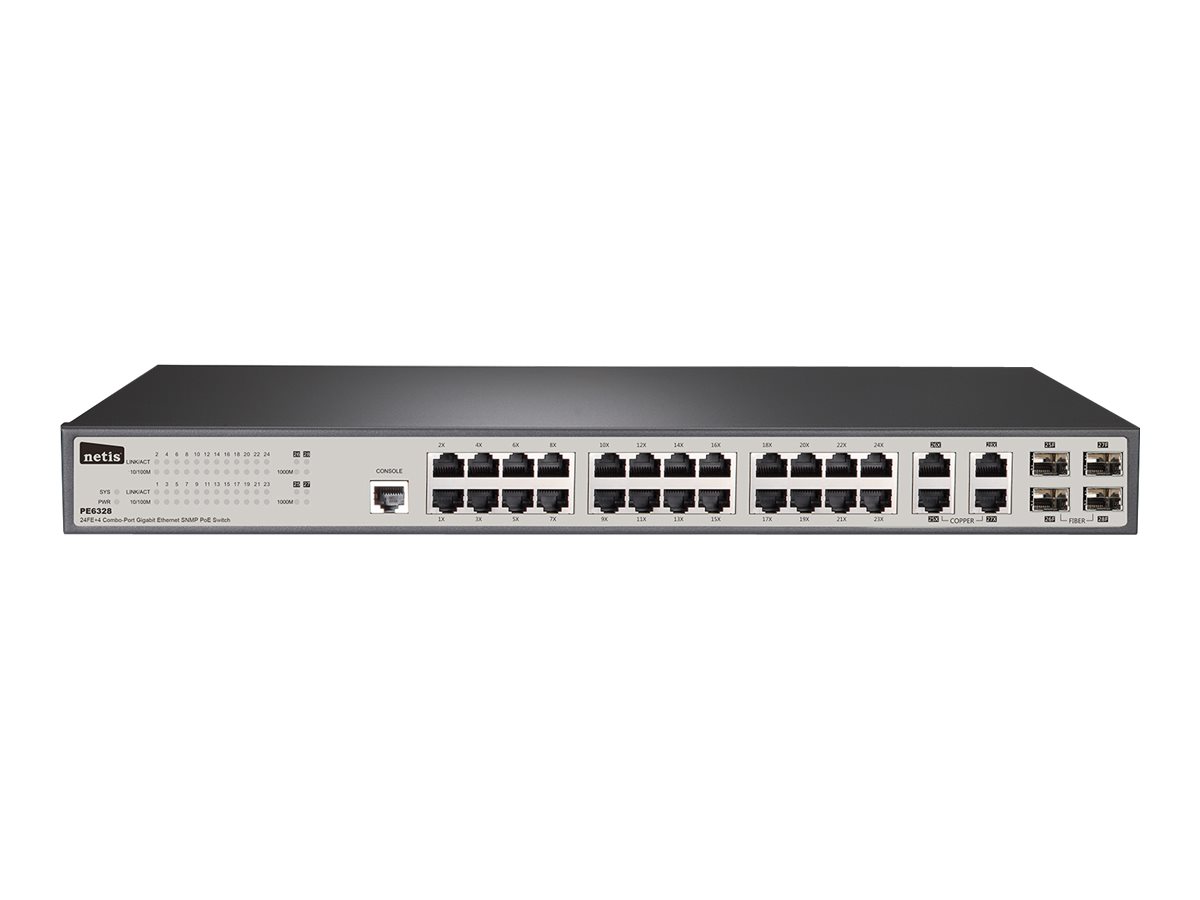

Netis Switch 24+4 Port PE6328
$1,932.00
Netis Switch 24+4 Port PE6328
Description
Netis Switch 24+4 Port PE6328 Mixed Giga Ethernet SNMP PoE
| IEEE 802.3af PoE in flexible network deploy | PE6328 provides 24 10/100Mbps RJ45 ports supporting IEEE 802.3af PoE (Power over Ethernet), and 4 Combo Gigabit ports supporting auto copper/fiber switching. With the PoE function, it can automatically detect and supply power up to 15.4W on each port for the IEEE 802.3af compliant Powered Devices (PDs), like PoE APs, IP Phones, IP cameras, etc. It would be an efficient and flexible choice for you to build up the wireless AP & network surveillance projects. |
| Reliable L2 switching features | PE6328 provides 802.1D Spanning Tree (STP), 802.1w Rapid Spanning Tree (RSTP) for enhanced network resilience and redundancy backup. It also supports static/dynamic LACP and manual aggregation for increased bandwidth reliability. Featured with IGMP snooping V1/V2/V3, it's best for facilitating multicast applications and reduced congestions due to multicast flood. |
| Efficient VLAN ability | PE6328 features with IEEE 802.1Q Tag-based VLAN and Port based VLAN to help deploy and organize network with increased convenience, higher efficiency and improved security. IT supports up to 4K VLANs groups (out of 4049 VLAN IDs). Together with support for VLAN mapping, GVRP protocol for VLAN Management, it helps you set up and manage VLANs more easily. |
| Different QoS policies for various network services | The function "Quality of Service" (QoS) is in higher demand with the rapid development of more and more important data transmitted over the Internet. PE6328 provides different QoS levels for different types of data flow, even for business flow with a higher delay and jitter requirements. It can control a variety of network applications and meet a variety of network applications require, such as: Control of Resources for setting bandwidth limitation, Cutting services for helping ISP distinguish different messages from real-time services. |
| Security assurance | PE6328 Provides IEEE 802.1x Port-Based/MAC-Based Authentication, RADIUS/ TACACS+ users access authentication, Access Control List(ACL), Dynamic ARP inspection, MAC Binding, Broadcast Storm Control, etc. With these complete internal security features, it helps maintain a healthy network free from virus attacks, unauthorized intrusion and potential threats. |
| Multiple management options | PE6328 can be managed through multiple methods, providing IT administrators extra flexibility in network management. It can be easily managed through web-based GUI, SNMP (v1/2c/v3) for compatibility with existing SNMP-based consoles, Telnet, CLI. |
Specification
Additional information
| Brand | NETIS |
|---|---|
| MPN | PE6328 |
| Dimensions | |
| Device Type | |
| Compliant Standards | |
| Power | |
| Performance | |
| Enclosure Type | |
| Sub Type | |
| Power Over Ethernet | |
| MAC Address Table SIze | |
| Remote M |
| Product Description | Netis PE6328 - switch - 28 ports - managed - rack-mountable |
| Device Type | Switch - 28 ports - managed |
| Enclosure Type | Rack-mountable |
| Subtype | Gigabit Ethernet |
| Ports | 24 x 10/100 (PoE) + 4 x combo Gigabit SFP |
| Power Over Ethernet (PoE) | PoE |
| Performance | Switching capacity: 12.8 Gbps |
| MAC Address Table Size | 8K entries |
| Remote Management Protocol | SNMP 1, Telnet, SNMP 3, SNMP 2c, HTTP, SSH, SSH-2 |
| Features | Flow control, auto-negotiation, IGMP snooping, port mirroring, DiffServ support, Weighted Round Robin (WRR) queuing, MAC address filtering, Broadcast Storm Control, half duplex mode, full duplex mode, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, tunneling, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), bandwidth control, Device Link Detection Protocol (DLDP) support, LLDP support, DHCP relay, Link Aggregation Control Protocol (LACP), IP-MAC binding, Multicast VLAN Registration (MVR), Strict Priority (SP), tagged VLAN, Loopback, Back Pressure Support, MAC address learning, flow mirroring, VLAN mirroring |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1s |
| Power | AC 120/230 V (50/60 Hz) |
| Dimensions (WxDxH) | 17 in x 9.8 in x 1.7 in |
