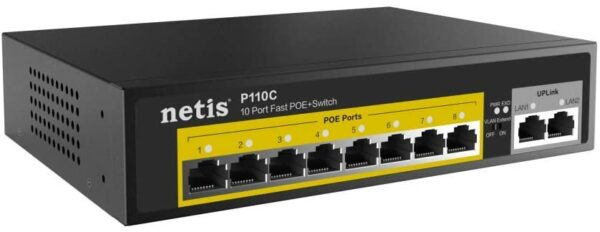

Netis P110C is a 100M standard POE switch that provides 10 10/100M adaptive RJ45 ports. Ports 1~8 features POE power supply capability and can be used as Power over Ethernet devices. The power supply port can automatically detect and recognize the powered device that complies with the IEEE 802.3af/at standard and supply power through the network cable.Supports two modes: normal switch mode/250M ultra-long transmission. P110C makes it easier for you to deploy wireless access point (AP) and IP terminal network devices using POE technology.
Features
• Supporting 802.3 Ethernet, 802.u Faster Ethernet； • Supports POE IEEE 802.3af/at compliant Powered Device (PD) • Modes: Normal switch mode/Extended mode(Port1-4:250Metres ultra-long transmission) • Ports 1~8 features POE power supply capability and can be used as Power over Ethernet devices； • Auto MDI/MDIX crossover for all ports • Support full duplex based on IEEE802.3x and half duplex based on Backpressure • Support non-blocking wire speed forwarding • MAC address auto-learning & auto-aging • Steel case，the total POE power budget of 100 W • Just Plug and PlayAdditional information
| Brand | NETIS |
|---|---|
| MPN | P110C |
| Interface | 8*10/100Mbps POE ports（Data/Power) 2*10/100M uplink RJ45 ports (Data) |
| Basic function | Follow IEEE 802.3 Ethernet and IEEE802.3u Fast Ethernet Protocol Supports POE IEEE 802. 3af/at compliant Powered Device (PD) |
| Standards | IEEE 802.3 10BASE-T Ethernet IEEE 802.3i 10BASE-T Ethernet |
| Mode | Normal switch mode/Extend mode |
| Data Transfer Rate | Etherent:10Mbps(Half-duplex);20Mbps(Full-duplex) Fast Entherent:100Mbps(Half-duplex);200Mbps(Full-duplex) |
| Store & Forwarding | Yes |
| Switching Capacity | 2G |
| MAC Address Table Size | 2K |
| Jumbo Frame | 2048 byte |
| Environment | Operation Temperature：0℃～40℃ |
| Power Input POE Standards | Single port maximum power 30W, Support over-current,over-voltage and short-circuit protection Support Soft Start of High Power PD Support sequential boot-up |
| Cabling type | 100Base-TX: Cat 5e or better UTP/STP(≤100m) |
